Low-chromium cast-ball section is favored by many ball users because of its wide raw materials, simple production equipment and process, and low price, especially in China. The raw materials of low chromium cast balls are scrap iron wire, scrap steel and so on. They are the cheapest in almost all steel balls. The electric furnace melts and adds 1-3% chromium alloy. The low chromium cast balls are cooled in two buckled hemispheric moulds. After grinding, they can be inspected and marketed, even without special heat treatment.

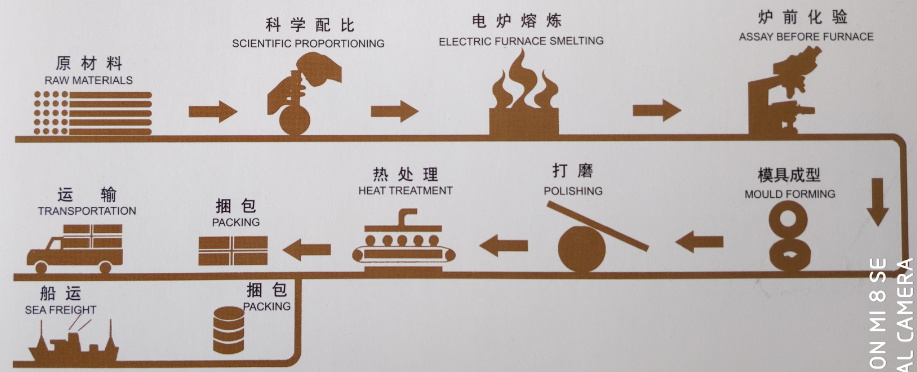

The process flow chart is as follows.
二、Rainbow Forging-rolling Ball Capacity Table

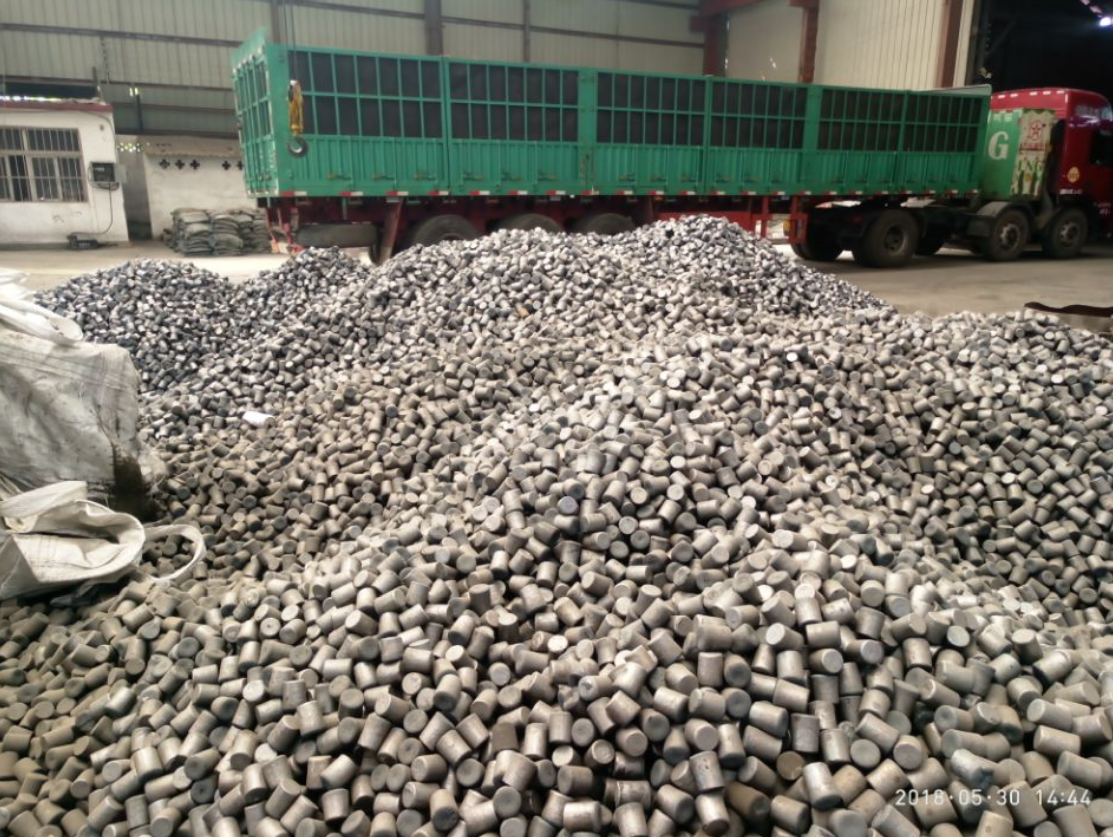

φ17mm—150mm，φ14*14mm---φ50*60mm Rainbow has a low chromium ball casting of 17 mm-150 mm and a low chromium section casting of 14*14 mm-50*60 mm. It can customize and produce various low chromium ball sections according to the order quantity. It has an annual delivery capacity of more than 10,000 tons.
三、Chemical Parameters of part Balls and Segments in Huamo Company
| Model | Chemical composition | Casting ball specification mm | Casting specification mm | ||||||||
| c | Si | Mn | Cr | Mo | Cu | Ni | P | S | |||
| LBCr26 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 23-30 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ￠17-￠150 | ￠14*14--￠50*60 |
| LBCr20 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 18-23 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| LBCr15 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 14-18 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| LBCr10 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 10-14 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| LBCr8 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 7-9 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| LBCr5 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 5-8 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| LBCr2 | 2.0-3.5 | ≤1.2 | 0.3-1.5 | 1-3 | 0-3.0 | 0-1.2 | 0-1.5 | ≤0.10 | ≤0.06 | ||
| Note | Support OEM or customize special ingredient steel balls according to customer requirements. The hardness of small straight D steel ball is higher than that of large diameter steel ball. If the hardness range is required, it can be adjusted by heat treatment process. | ||||||||||
四、Technical parameters of high chromium balls
| Name | Model | Surface hardness（HRC） | Fatigue Life of Falling Ball Impact(times) | |
| Quench state | Non quenched state | |||
| High Chromium Cast Iron Grinding Ball | ZQCr26 | ≥56 | ≥45 | ≥8000 |
| High Chromium Cast Iron Grinding Ball | ZQCr20 | ≥56 | ≥45 | ≥8000 |
| Medium Chromium Cast Iron Grinding Ball | ZQCr8 | — | ≥48 | ≥8000 |
| Low Chromium Cast Iron Grinding Ball | ZQCr2 | — | ≥45 | ≥8000 |
| Grinding Ball of Bainite Ductile Iron | ZQSi3 | ≥50 | — | ≥8000 |
| Item | Specifications | ||||||||||||||
| φ10 | φ15 | φ20 | φ25 | φ30 | φ40 | φ50 | φ60 | φ70 | φ80 | φ90 | φ100 | φ110 | φ120 | φ130 | |
| Diameter deviation | +1.0-0.5 | +2.0-1.0 | +3.0-1.0 | +3.5-1.5 | |||||||||||
| Maximum diameter and minimum diameter deviation | ≤1.0 | ≤2.0 | ≤3.0 | ≤4.0 | |||||||||||
五、Low Chromium Ball and Section Packaging

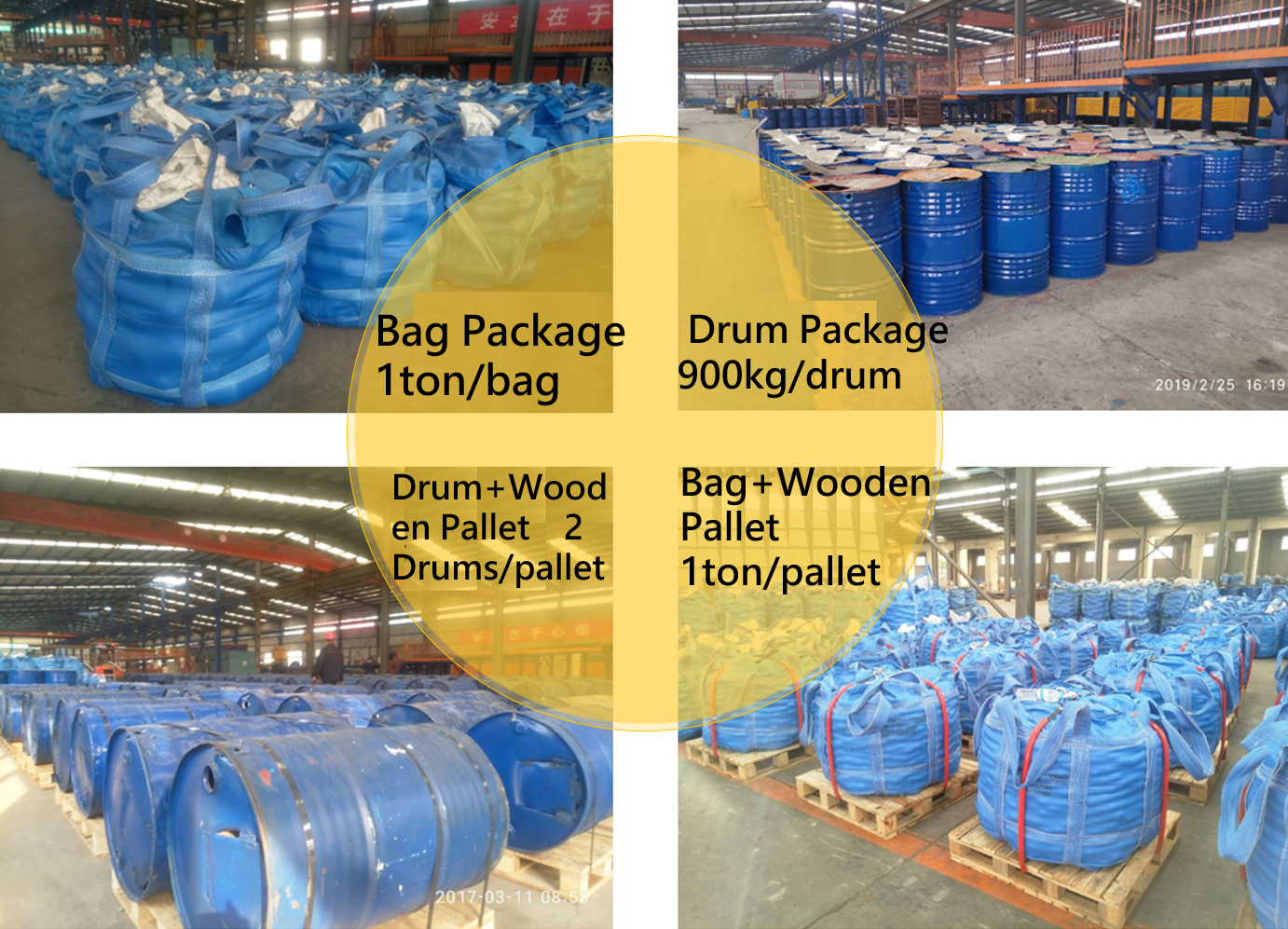

Usually, four kinds of packing methods are used, ton bag, barrel, ton bag + wooden bracket, barrel + wooden bracket.
Our company has been manufacturing and exporting low chromium balls for many years. We have rich experience in production, inspection, transportation and export. We are willing to base our long-term cooperation on high-quality products, timely shipment and delivery, competitive prices and satisfactory services. Our goal is to be a professional supplier of high-quality wear-resistant consumables for mines in China.
